Monday, October 20, 2008

Blacksmith's Tools

Here are a couple of the hand tools that I use everyday. Pictured below is a Lufkin rule. It is one of the most important tools in my shop. Without it, I'm like a ship with no captain. Tape measures are okay, but for blacksmithing, a steel rule is so much nicer. Plus, if you flip it over and measure a circle, the fine print tells you what length of bar stock you need to make the circle.

Next is the hammer I made. I wanted a shorter, stubbier hammer like a Habermann or Hofi hammer. With a stubbier hammer, you strike the metal with more of a punching blow. I find this style of hammer a lot easier to use and it doesn't wear me out as quickly as a traditional blacksmithing hammer. Some people don't like them, but this style of hammer is my favorite.

The problem was that a Hofi Hammer costs over $100, and a Habermann Hammer is only a little cheaper. There are some other options, but the only other hammer of this style I could find for a reasonable price weighs in at 2 lbs - little smaller than I like for my main forging hammer.

So, I ran down to Home Depot and bought a Stanley "blacksmith" hammer. It's horribly balanced and comes with a junky plastic handle. But, it's still made of nice tool steel and weighs over 4 lbs. So, I figured if I cut it down, it would weigh somewhere in the ballpark of 3 lbs - the weight I like for my forging hammer.

After a little cutting, grinding, and tempering - voila! I call it the "Home Depot Habermann." It only cost me about $20 and is so much more comfortable than the hammer I used to use.

Plus it comes with this helpful reminder:

I also make my own tongs. Once you get the metal hot, you need something to grab it with. That's where tongs come into play. Tongs can be bought, but making tongs for a specific task is a great blacksmithing exercise and saves a bunch of money. It's also very satisfying to do work with tools you made yourself.

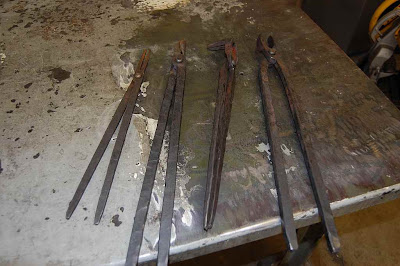

Pictured from left to right are: pickup tongs to grab various stock sizes, box jaw tongs for holding 1" wide flat bar stock, angle jaw tongs for holding scrolls, and tongs for closing hot collars. If you are new to blacksmithing, I will explain some of the terminology in upcoming blog entries.

Now that you are familiar with my shop and some basic blacksmithing tools, next up will be some blacksmithing!

Monday, October 13, 2008

Shop Tour (Part 2)

Let's pick up where we left off in Part I ...

This is my leg vise. Gotta have one of these. By the way some of my tools are very old - this vise may well be over 100 years old, I'm not sure.

This is my layout table:

Next is the chop saw. It doesn't get as much use now that I have the horizontal bandsaw, but it still comes in handy a lot.

Here's my drill press:

Next is my old 400 amp Miller stick welder. It has a lot of power and still works great.

This is the welding area & a small Mig welder:

This is probably my favorite tool - the flypress. It can do so many things, I could go on forever. I still find new ways to use it all the time.

Here are my sanders. I use them to deburr and sometimes reshape steel.

In the back area, I have my old Logan 10" lathe. It's seen a lot of use, but it's more than accurate enough for my purposes.

Finally, there's my little air compressor, surrounded by a bunch of projects. In the foreground, you can see the motorized beach cruiser I built- more on that later.

That about does it for the shop tour. Hope you enjoyed checking it out! Soon I'll show you how I use everything...

Shop Tour (Part 1)

Hi! Welcome to my blog! I thought the best way to get started would be a tour of my workshop, so you will be familiar with the basic tools I use during the course of a day.

Here's a picture of my shop from the entrance in the garage:

Over here in the corner, we have the horizontal/vertical bandsaw. These saws are really nice. They can handle small to really large pieces of steel and you can cut multiple pieces at once.

Next is the table I have sitting next to the anvil. I use it to store my hammers, tongs, and any other stuff I might need while I'm working:

These are two trestles I made for assembling gates and railings. They work really well if you don't have a big layout table, or you just want to keep whatever you are working on out of the way. They don't take up much space when you aren't using them.

Here is the pipe forge I'm building. It has a ribbon burner that I learned how to make from an article written by John Emmeriling in Hammer's Blow magazine. I still need to finish it up, but the ribbon burner is supposed to be really hot and efficient.

There's my torch and a stump I use for shaping hot metal:

Next is the centerpiece of the shop, the anvil. It has a tray to hold tools I use while I'm working.

This is the quenching bucket. It's filled with water to cool hot steel.

Here's my forge. It's a pretty nice one, but it's about time to upgrade to something that fits my needs a little better. I use propane gas right now, but I'm thinking of switching over to natural gas. I know how to run a coal forge, but right now I only use gas.

That's it for part one. Stay tuned for part II!
